Hi-Build Epoxy Coating
100% Solids Zero VOC Epoxy
Coating
Epoxy.com Product #1
GENERAL DESCRIPTION
Epoxy.com Product #1 All Purpose
Epoxy Coating in
a Burlington, Vermont Water Plant
Product #1 All Purpose Epoxy Floor and Tank Coating a two component,
industrial strength zero (0) VOC, 100% solids epoxy
Hi-Build epoxy coating used to coat concrete, steal
and most common construction materials. Excellent for use in high foot traffic and light
to moderate forklift traffic areas where abrasion
resistance is required; for protection against mild
corrosion and as a decorative waterproof coating for walls,
floors, tanks, etc. It can be broadcast with appropriate
silica sand (contact Epoxy.com Technical Support for a
recommendation), to create a thicker flooring system in high
abrasion situations.
ADVANTAGES
- Moisture Insensitive
- Ceramic like finish
- Industrial Strength
- Sprayable
- Solvent Free - 0.0 lbs VOC
- Waterproof
- Extremely Durable
- Chemical Resistant
SURFACE PREPARATION
Surface to receive free Product #1 - 100%
Solids, VOC All Purpose Epoxy
Floor and Tank Coating, must be clean and
sound. Remove all dirt, laitance,
grease curing compounds and other foreign matter by
sandblasting, or mechanical abrasion. Remove water and dust
from all surfaces with an oil free blast immediately prior to
application.
See Epoxy.com Surface
Preparation Guide form more details.
MIXING INSTRUCTIONS
Temperature of Product #1 - 100%
Solids, VOC All Purpose Epoxy
Floor Coating, must be 50 °F or above at time of mixing. Stir each component separately before
blending. Mix two parts by volume of Part A with one part by volume of
Part B for three minutes with a low speed electric drill motor equipped
with a mixing paddle.
APPLICATION
Epoxy Primer Product #899 (or for
a more chemical resistant primer Product
#12)
is recommended for concrete surfaces. Allow primer to cure
until it is tack-free. Then apply Product #1 - 100%
Solids, VOC All Purpose Epoxy
Floor and Epoxy Coating, with a roller, brush, or
spray equipment. Two coats are recommended. Apply at a rate
of 160 to
200 SF Per gallon per coat (8-10
mils) with 2 coats recommended. Seven days cure time is required to reach maximum
chemical resistance. For more information before installing
please see
installation tips.
LIMITATIONS
DO NOT apply at temperatures below
50° F. Surface must be dry.

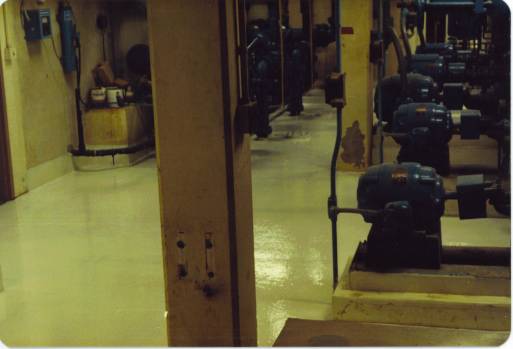

Product #1 All Purpose Epoxy Coating on the floor of Tri-Town Water District (Vermont) Floor
SAFETY PRECAUTION
Prolonged or repeated exposure may cause eye and skin
irritation. If contact occurs, wash immediately and seek
medical help. Use safety glasses with side shields and wear
protective rubber gloves.
CLEANING
All tools and equipment should be cleaned before the system
gels. Use MEK, Acetone, or any lacquer solvent
APPLICATION PROPERTIES @77° F
|
|
Mix Ratio |
2:1 By Volume |
|
Viscosity (mixed) |
950 CPS |
|
Pot Life (200 gr.) in minutes @70° F. |
30-40 (normal cure) |
| VOC Content | "0.0" (zero) |
| Recommended Application Rate | 160-200 SF per gallon per coat |
|
Set Time in Hours @ 70°F. |
10-12 (normal cure) |
|
Initial Cure |
24 Hours |
|
Final Cure |
5 Days |
|
Packaging Unit Size |
3 gal. 15 gal.
|
|
Standard Colors |
See Color Chart
|
|
Typical Coefficient of Friction-Rubber Shoe Surface with
Epoxy.com Product # 50 Anti-skid Fine Non-Skid Added
|
ASTM F-489
|
|
Static Friction w/ Saltwater Solutions on
surface
|
0.90-0.97
|
|
Static Friction w/ oil on Surface
|
0.72-0.75
|
|
Sliding Friction w/ Saltwater Solution on
Surface
|
0.87-.090
|
Click the picture
of color card at the side for a larger version of this picture of the
color chart.
Please note:
The picture to the right is a photographic reproduction
of the color card for this product. The photo reproduction process and
your monitor and/or printer will change these colors. This chart is to
give you an idea of the colors available and not intended for critical
color selections.
Material Certification of LEED Requirements
Epoxy.com a division of Epoxy Systems, Inc. certifies that Product #1
- 100%
Solids, VOC All Purpose Epoxy
Coating, meets or exceed LEED requirements as summarized below:
LEED Credit IE 4.2:
Indoor Environmental Quality/Air Quality Before Occupancy Materials meet the requirement for VOC content Pertaining to LEED IEQ 402 Indoor Emitting Materials Credit. Refer to the individual product component
technical data sheets and MSDS for further information.
Epoxy Coating Installation Guide
Epoxy Coatings Calculator
